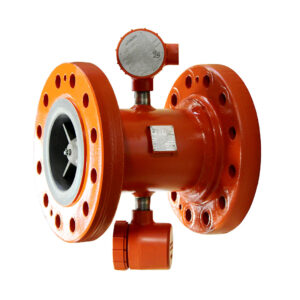

Turbine Type Meters
Manufacturer: Faure Herman
Ranges
TZN model
- ½” - 20” with flow rates of: 0.12 – 9,300 m3/h.
- Pressure class: ANSI 150 to ANSI 2500 (ASME B16.5).
- Viscosity: From Petrol to Viscous Crude Oils from 0.2 to 350 cSt (higher on request).
- Uncertainty/Accuracy:
- Repeatability:
<0.04% (±0.02%) for Custody Transfer applications as Standard;
<0.02% (±0.01%) for premium or Master meter applications; - Linearity:
±0.15% for Custody Transfer applications as Standard;
±0.10% for Premium or Master meter applications.
TLM model
- 3" - 4" with flows from: 3 to 300 m3/h.
- Pressure class: 3'' and 4'' ANSI 150 and ANSI 300 (ASME B16.5).
- Viscosity: From Petrol to Oils up to 15 cSt.
- Uncertainty/Accuracy:
- Repeatability: <0.04% (±0.02%);
- Linearity:
± 0.15% (for a single product);
± 0.25% (for multiple products).
applications
TZN model
- Measurement and transfer of custody;
- Allocation of oil production flows;
- Measurement in EMED or Biodiesel loading (B-100);
- Storage Management;
- Measurement of pipelines;
- Loading and unloading from stations or maritime terminals and oil tankers;
- Leak Detection;
- Master Meter type meters.
TLM model
- Storage;
- For loading Tank Trucks and Tank Wagons;
- Terminals and charging bases;
- Transfer of light products up to 15 cSt;
- Master Meter type meters.
Main Differentials
Meters recognized worldwide for their high performance, achieved through a helical rotor, specially machined to allow measurement in a wide range of viscosity and for its robustness, its construction makes the fluid velocity parallel to the blade, making it less sensitive to viscosity and density variation.
The rotor is manufactured from a single solid block of titanium or aluminum (no welded parts). Developed based on detailed engineering analysis, the design offers improved reliability and performance.
Due to its helical technology, the FAURE HERMAN Turbine Type meters can be easily used as a Standard Meter, featuring a high level of repeatability (<0.04% in 5 measurements to obtain the uncertainty <±0.027%), as required by the requirements of the standard API MPMS 4.5 for standard measurement applications.
All meters are calibrated with hydrocarbons, no water is used, thus ensuring that all meters work well under the process conditions at the customer's site. Furthermore, the fluid is thermally controlled during calibrations, resulting in a more stable thermal profile and better repeatability.
This calibration is performed in the Faure Herman laboratory which is accredited by COFRAC, in accordance with ISO/IEC 17025, which is a member of the ILAC (International Laboratory Accreditation Cooperation). As INMETRO has a Mutual Recognition Agreement with ILAC, see the link below, the factory calibration is recognized.
http://inmetro.gov.br/barreirastecnicas/recmutuo.asp
The robustness of the Faure Herman turbine meter, in combination with custom factory calibration, ensures performance stability over many years.
Pick-up Coil and Pre-Amplifier used in all sizes and models are the same, thus reducing the amount of spare parts reserved for possible replacements.
Model TLM has a flow conditioner integrated in the meter body, so it does not require a straight run downstream or upstream.
Main features
TZN model
- Proven robust technology;
- Ability to operate with particulates, for example the 2” meter is able to work well with particulates up to 0.85 mm, with the use of a filter upstream of the meter with a minimum MESH 20;
- Superior linearity and repeatability across multiple products with a unique K factor;
- Minimal sensitivity to variations in density and viscosity;
- Long-term stability and reliability;
- Low cost of OPEX;
- Short downtime - customer serviceable;
- Easy to test - Ideal solution for meters;
- Suitable for high viscosity (>1,000 cSt);
- Advanced materials and patented design for working in harsh conditions;
- Low load losses and low energy consumption;
- Meets the requirements established in international standards and certifications;
- Calibrated according to customer specified viscosities;
- Manufactured by a company with nearly 100 years of measurement experience.
TLM model
- Proven robust technology;
- Ability to operate with particulates, for example the 3” meter is able to work well with particulates up to 1 mm, with the use of a filter upstream of the meter with MESH 18 at least;
- Superior linearity and repeatability across multiple products with a unique K factor;
- It does not require a straight stretch downstream or upstream;
- Removable cartridge for easy maintenance;
- Easy installation - Horizontal or Vertical;
- Short downtime - customer serviceable;
- Low cost of OPEX;
- Low load losses and low energy consumption;
- Meets the requirements established in international standards and certifications;
- Calibrated according to customer specified viscosities;
- Manufactured by a company with nearly 100 years of measurement experience.
Certifications and Approvals
- For Model TZN => PAM (Model Approval Ordinance) - Inmetro - Ordinance INMETRO/DIMEL/Nº 371, of November 24, 2008, issued in accordance with the Metrological Technical Regulation of measurement systems equipped with meters for the determination of volume of liquids, approved by Inmetro Ordinance No. 064 of April 11, 2003 004024;
- For both models => INMETRO definitive certificate for use in classified areas, in accordance with INMETRO Ordinance No. 179 of 05/18/2010, ABNT NBR IEC 60079-0:2013 and ABNT NBR IEC 60079-1:2016. - Certificate of Conformity BVC21.3876-X; ATEX and IECEx (II2G – IIC T6) | UL/cUL (Class 1 Div 1 Group C, D).
- Certificate of calibration performed in Faure Herman laboratory which is accredited by COFRAC, in accordance with ISO/IEC 17025, which is a member of the ILAC (International Laboratory Accreditation Cooperation). As INMETRO has a Mutual Recognition Agreement with ILAC, the factory calibration is recognized.
- Electromagnetic Environment: Complies with EMC Directive 2014/30/EU.
