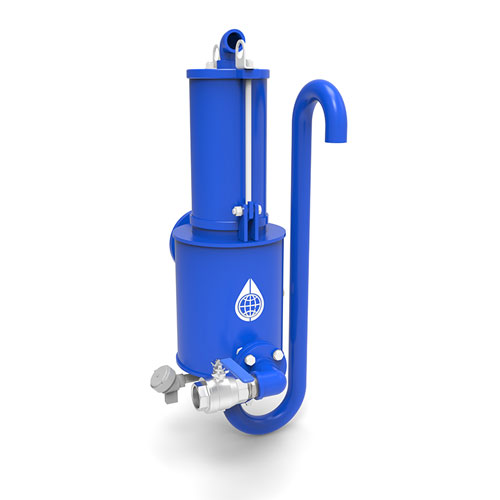

Automatic Separation Valve Type TOR

Manufacturing: Eco-Valves
Draining rainwater from floating roof tanks requires an efficient and, above all, safe system. Failures in this process can allow petroleum products to mix with rainwater, resulting in product losses, environmental contamination, and operational risks. The TOR valve is a safety solution designed to act as an automatic barrier, ensuring that only water is drained and preventing the unwanted release of petroleum products.
How it works
The TOR valve is installed on the outlet flange of the manual drain valve on the roof of the storage tank. It is ready to drain water that accumulates on the roof and, at the same time, close immediately if it detects product entering the drainage system. When the TOR valve closes, the magnetic proximity switch (factory option) can send an alert signal to a remote monitoring system, alerting the appropriate authority and allowing for quick corrective action.
Industrial applications
Suitable for floating roof tanks, the TOR Type Automatic Separation Valve is the ideal safety solution for rainwater drainage. Its ability to automatically close when detecting petroleum products makes it a crucial tool for loss prevention and environmental protection in industrial environments.
Technical specifications
- Valve body and cover: epoxy coated carbon steel
- Internal parts: stainless steel
- Stamps: FKM
- Coating: Fusion bonded epoxy (RAL 5017)
- Screws and connectors: stainless steel
- Drain outlet pipe: stainless steel
- Input connection: 2"
- Working pressure: 2.5 bar / 36 psi
- Approximate weight: 87 kg / 192 lb
Advantages of the TOR Type Automatic Separation Valve
- Safety: prevents product loss, contamination and spills by automatically closing when it detects petroleum products;
- Reliability: it is based on a simple and reliable principle, with a simple and compact construction, designed to require minimal maintenance and last the life of the tank;
- Prevention: allows the sending of warning signals to remote monitoring systems, ensuring rapid corrective actions.
Certifications and compliance
- Each valve is assembled and tested in the ISO 9001 certified factory
Contact
For more information about the TOR type Automatic Drain Valve and other solutions, please contact [email protected].
