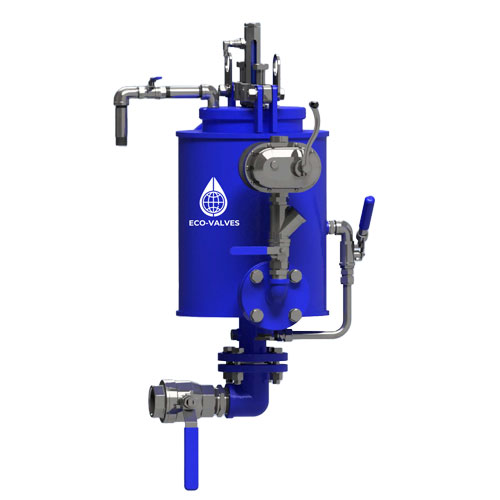

Automatic Separation Valve Type TOO
Manufacturing: Eco-Valves
Storage tank management in the oil and petroleum products industry faces a constant challenge due to the presence of accumulated water at the bottom of the reservoirs, which can compromise product quality and operational safety. Manual or less efficient methods for draining this heavy liquid can lead to product losses and environmental and operational risks. The ECO TOO valve emerges as a technological and automated solution to overcome this scenario.
How it works
The ECO TOO valve operates fully automatically, utilizing the density difference between liquids in storage tanks. Installed at the lowest point, it initiates drainage as soon as it detects the accumulation of the heavier fluid and remains open until this volume is completely eliminated. When the lighter liquid reaches the system, the valve closes instantly, ensuring a secure seal and preventing losses. When equipped with a limit switch, it can also transmit status signals to remote monitoring systems.
Industrial applications
Suitable for closed or floating roof tanks, the TOO Type Automatic Separation Valve is ideal for draining water from petroleum products such as gasoline, diesel, kerosene, jet fuel, naphtha, light crude oil, and other derivatives. Its operation requires no external electrical power, making it suitable for potentially explosive environments.
Technical specifications
- Valve body and cover: epoxy coated carbon steel
- Internal parts: stainless steel
- Stamps: FKM
- Ball valves: stainless steel
- Screws and connectors: stainless steel
- Coating: Fusion bonded epoxy (RAL 5017)
- Input connection: 4" ANSI #150 RF B16.5 (other connections available on request)
- Drain connection: BSPT
- Maximum pressure: 2.5 bar / 36 psi
- Approximate weight: 64 kg / 141 lb
Advantages of the TOO Type Automatic Separation Valve
- Economy: low maintenance, does not require external power supply, reduces water treatment volume and increases useful storage space;
- High performance: Offers immediate closing response and high accuracy/repeatability. The integrated anti-vortex device ensures controlled and efficient flow;
- Safety: prevents human error, protects the environment, reduces personnel exposure to harmful gases and eliminates product spills during drainage;
- Reliability and quality: time-tested product with a simple, compact construction designed to last the life of the tank
Certifications and compliance
- Valve assembled and tested in ISO 9001 certified factory
Contact
For more information about the TOO Type Automatic Separation Valve and other solutions, please contact [email protected].
