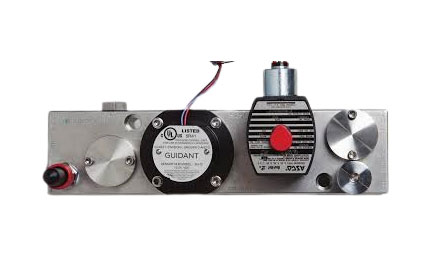

Monoblock Additive Injector

Manufacturing: Guidant Measurement
The Mono-Block II+ Additive Injector is the industry standard in additive injection systems. Compact, reliable, and widely installed in terminals around the world, this equipment ensures maximum precision in the additive process, protecting product quality and optimizing operations at loading docks.
How it works
The Mono-Block II+ accurately measures additives and markers during fuel or other liquid loading, ensuring precise mixing with the main product. Integrated with Guidant's Fusion4 and Accuload IV intelligent controllers or other controllers, the equipment continuously monitors the injected volume to ensure fluid homogeneity and maintain the ideal ratio in each transaction.
applications
- Fuel distribution terminals
- Mixing and additive units
- Oil pipelines and industrial pipelines
Technical specifications
- Compact manifold design
- Compatible with Fusion4 MSC-A, MSC-L, SSC and MiniPak family and Accuload IV.
- Control of up to 12 additive lines, with a single preset, Fusion4 MSC-L model
- Control of up to 24 additive lines, using two electronics, model MSC-A
- Control of up to 36 additive lines, with 01 Fusion4 MSC-L and 02 Fusion4 MSC-A
- Continuous monitoring of volume and ratio
- Interface with PLC systems or loading presets
- Simple and quick installation, can be supplied as an option in a rack of up to 12 Mono-Block II+
Advantages of the Mono-Block II+ Additive Injector
- Full compatibility: integrates seamlessly with the Fusion4, Accuload IV, or third-party electronics family
- Proven reliability: legacy of performance with over 100,000 units installed
- Manufactured from a solid block of 303 stainless steel, where all its components are assembled, such as: Positive Displacement type meter with oval gears, NC (Normally Closed) Solenoid Valve, Check Valve, Needle Valve and Filter, thus reducing possible leak points.
- Positive Displacement Meter with oval gears, with manufacturing options in Ryton and Stainless Steel
- Solenoid Valve, NC (Normally Closed), stainless steel body, suitable for use in classified areas, manufacturer Ascoval
- Integral adjustable needle valve at the block outlet for precise flow regulation
- Explosion-proof Hall effect sensor
- Cost reduction: promotes reduced maintenance needs and greater operational reliability
Certifications and compliance
- Approved for use in hazardous areas (zones with risk of explosion)
Contact
For more information about the Mono-Block Additive Injector and other terminal automation solutions, please contact [email protected].
